Product Details:
| Capacity | 400 piece/hour |
| Material | Mild Steel Powder Coated |
| Model Name/Number | BS4535 |
| Usage/Application | Shrink Wrapping |
| Phase | Three Phase |
| Frequency | 50 Hz |
| Voltage | 220v |
| Automation Grade | Semi-Automatic |
| Specification | Details |
|---|---|
| Model | Shrink Tunnel BS4535 |
| Chamber Size | 18″ W × 14″ H |
| Conveyor Type | Rod/Belt Conveyor |
| Applications | Large products – food, electronics, cosmetics, retail items |
| Build Quality | Heavy-duty & long-lasting |
| Operation | Electric |
| Purpose | High-efficiency shrink wrapping |
Product Details:
| Capacity | 30 piece/min |
| Material | Mild Steel Powder Coated |
| Model Name/Number | BS4525 |
| Usage/Application | Shrink Wrapping |
| Voltage | 220v |
| Phase | Three Phase |
| Automation Grade | Semi-Automatic |
| Driven Type | Electric |
| Frequency | 50 Hz |
Shrink Tunnel Machine is a heated mounted machine over conveyour system, The space in between the rollers is filled with an intergrated conveyor. By heating the film shrinks to fit snugly around the wrapped object. PVC is the most used Shrink Wrap. Several types of model are available.
Additional informationVoltage
AC 220/380 V 50/60 Hz
Power
6.5 kW
Size of Shrink Oven
900 x 450 x 250 mm (adjustable)
Conveying Speed
0 – 10 M/Min (adjustable)
Conveying Weight
10 Kg
Material
PVS / POF / PP
Dimension
1300 x 650 x 830 mm
Machine Weight
103 Kg
Product Details:
| Capacity | 30 piece/min |
| Material | Mild Steel Powder Coated |
| Model Name/Number | BEE 260 |
| Usage/Application | Shrink Wrapping |
| Phase | Single Phase |
| Automation Grade | Semi-Automatic |
| Voltage | 220v |
| Frequency | 50 hz |
SpecificationModel:BS 260Power:4 KwVoltage:220 V / 50 HZ-1 PhTunnel Size (L x W x H)750 x 250 x 150Sealing Speed0-10 M/MinConveyor Load5-8 KgShrink Material FilmPVC/POFExternal Machine Dimension (W x H x L)1000 × 460 × 590 mmMachine Weight40 Kg

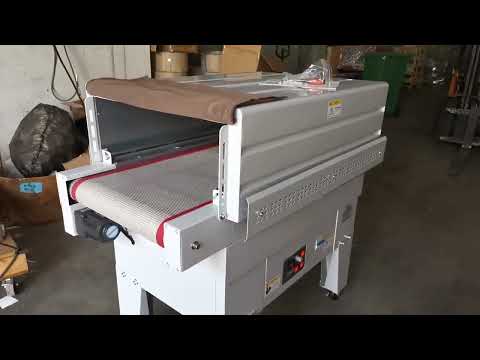

Product Details:
| Capacity | 500 piece/hour |
| Material | MS powder coated |
| Usage/Application | Shrink packaging |
| Phase | 3 phase |
| Voltage | 230V |
| Brand | Heatcon |
| Tunnel size | 650 mm x 350 mm |
Additional informationVoltage
AC 380 V / 50/60 Hz
Power
15 kW
Size of Shrink Oven
1200 x 650 x 350 mm (adjustable)
Conveying Speed
0 – 10 M/Min (adjustable)
Conveying Weight
30 Kg
Material
PVC / POF / PP
Dimension
1600 x 850 x 830 mm
Machine Weight
162 Kg
Product Details:
| Automation Grade | Semi-Automatic |
| Machine Type | Chamber Shrink Machine |
| Max Packing Size (L x W x H) | 15 x 20 inch |
| Packing Speed | Up to 15 packs/min |
| Power Consumption | 5 kW |
| Material of Construction | Mild Steel with Powder Coating |
Short DescriptionShrink Chamber MachinePowder Coated Body
4 Kw Power ConsumptionCountry of origin: IndiaSpecifications
Brand: Heatcon
Weight (Approx.) : 90 kg
Model : PM-57/SC
Body : Powder Coated
Power Source : Electric
Voltage : AC 220
Frequency : 50 Hz
Power Consumption : 4 kw
Sealing Size (W x L) : 15 x 20 inch (38.1x50.8cm)
Product Dimension : 450 x 300 x 250 mm
Dimension (L x W x H) : 1985 x 720 x 1080 mm
Machine Weight : 90 kg (Approx.)
Product Details:
| Capacity | 50 piece/min |
| Model Name/Number | BEE BS 3020 |
| Usage/Application | Shrink Wrapping |
| Voltage | 220v |
| Brand | Heatcon |
| Material | Mild Steel Powder Coated |
| Phase | Single Phase |
| Frequency | 50 Hz |
| Automation Grade | Semi-Automatic |
| Power | 5.1kw |
The BS-3020 tabletop shrink tunnel is a semi-automatic shrink packaging machine designed for compact operations. It typically runs on 220V or 380V, 50Hz, and consumes around 4.5 to 5.1 kW of power. The tunnel dimensions are approximately 800–900 mm in length, 300 mm in width, and adjustable height between 50–200 mm. The external size is roughly 1200 × 500 × 1050 mm.
It features an adjustable conveyor speed (0–10 meters per minute), with a load capacity of 5–10 kg. Heating is done via quartz tubes, and temperature is controlled using a PID controller. Conveyor options include Teflon belt or rollers, depending on the variant. It supports shrink films like PVC, POF, and PE.
This model is ideal for small-scale packaging of boxes, bottles, cosmetics, toys, and printed materials. It includes safety features like an emergency stop and adjustable air flaps for uniform shrink quality.
